Edge Detection

Edges represent sudden changes in pixel intensity, which usually correspond to object boundaries. Detecting edges helps in shape recognition and segmentation.

Sobel Edge Detection

The Sobel operator calculates gradients (changes in intensity) in both the X and Y directions, helping detect horizontal and vertical edges.

# Convert to grayscale
image = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)

# Apply Sobel filter
sobel_x = cv2.Sobel(image, cv2.CV_64F, 1, 0, ksize=5)  # Detects vertical edges
sobel_y = cv2.Sobel(image, cv2.CV_64F, 0, 1, ksize=5)  # Detects horizontal edges
sobel_combined = cv2.magnitude(sobel_x, sobel_y)  # Combines both directions
Note
Note

Key Parameters:

  • src: input image (must be grayscale);
  • ddepth: depth of the output image (e.g., cv2.CV_64F);
  • dx: order of the derivative in the X direction (set 1 for horizontal edges);
  • dy: order of the derivative in the Y direction (set 1 for vertical edges);
  • ksize: kernel size (must be odd, e.g., 3, 5, 7).

Canny Edge Detection

The Canny Edge Detector is a multi-stage algorithm that provides more accurate edges by:

  1. Applying Gaussian blur to remove noise.
  2. Finding intensity gradients using Sobel filters.
  3. Suppressing weak edges.
  4. Using double thresholding and edge tracking.
# Apply Canny Edge Detector
canny_image = cv2.Canny(image, threshold1, threshold2, apertureSize, L2gradient)
Note
Note
  • image: input grayscale image;
  • threshold1: lower threshold for edge detection (e.g., 50);
  • threshold2: upper threshold for edge detection (e.g., 150);
  • apertureSize (optional): size of the Sobel kernel (default: 3, must be odd);
  • L2gradient (optional): use more accurate L2 norm gradient calculation (default: False).

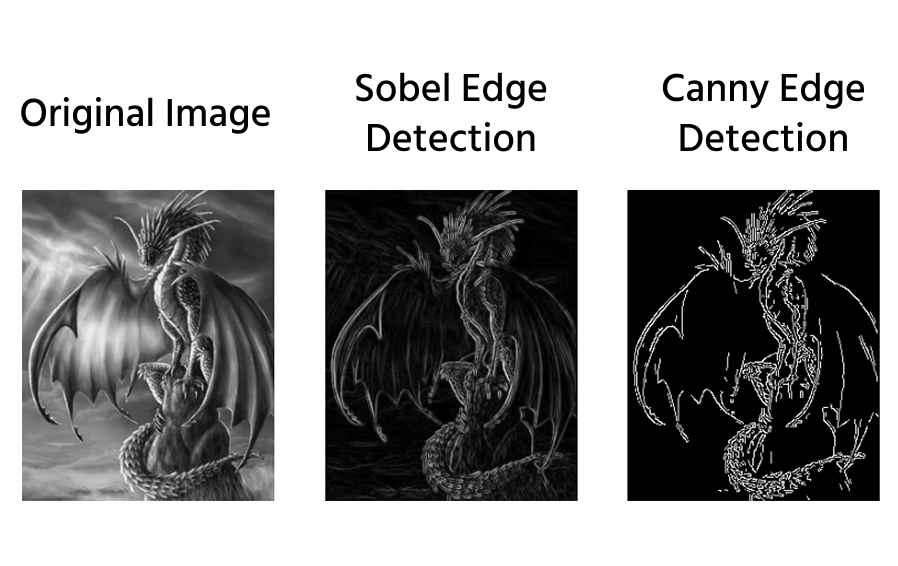

A comparison of edge detection methods:

edge detect compared
Task

Swipe to start coding

You are given an image:

  • Convert image to grayscale and store in gray_image;
  • Apply Sobel filter on X and Y directions (output depth cv2.CV_64F and kernel size 3) and store in sobel_x, sobel_y accordingly;
  • Combine Sobel-filtered directions in sobel_img;
  • Apply a Canny filter with a threshold from 200 to 300 and store in canny_img.
